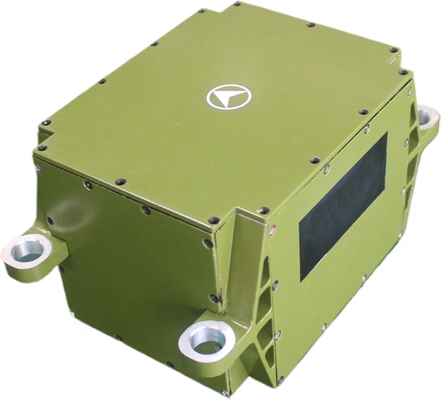

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration
Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

বড় ইমেজ :  Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: NAVI OPTICS
সাক্ষ্যদান: CCS
মডেল নম্বার: Tdl45imu
নথি: TDL45IMU0 Laser Inertial Un...it.pdf
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: একটি সেট
প্যাকেজিং বিবরণ: কার্টন বক্স
পরিশোধের শর্ত: এল/সি, টি/টি

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration

বিবরণ
শূন্য পক্ষপাতের স্থায়িত্ব (100s): 0.01 °/ঘন্টা জিরো বায়াস পুনরাবৃত্তিযোগ্যতা: 0.005 °/ঘন্টা
সম্পূর্ণ তাপমাত্রা স্কেল ফ্যাক্টর: ≤5 পিপিএম এলোমেলো হাঁটার সহগ: 0.002 °/ঘন্টা
ইনপুট ব্যাপ্তি: 400 °/s
বিশেষভাবে তুলে ধরা:

small high-precision TDL45IMU inertial unit

,

laser inertial unit large impact resistant

,

IMU measurement unit large vibration proof

Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration


♦ Overview

This type of laser inertial unit has the advantages of small size, light weight, low power consumption, and high accuracy. It contains eight points of vibration reduction and can meet the application scenarios of large impact and large vibration. It can be used to design pure strap down and meet the needs of new unmanned platforms, water/torpedo weapons, as well as land, airborne, and missile weapon platforms for small size and high-precision inertial unit equipment. It has the dynamic measurement function of carrier angular motion and linear motion information.



♦ Performance

Project Contents Index Notes
Performance indicators of gyroscope
Zero bias indicator Zero bias stability (100s) 0.01°/h
Zero bias repeatability 0.005°/h
Scale Factor Full temperature scale factor ≤5ppm
Other indicators Random walk coefficient 0.002°/h
Input range 400°/s
Performance indicators of accelerometer
Deviation index Deviation monthly comprehensive error 20μg
Zero bias indicator Zero bias temperature sensitivity 20μg/℃
Scale Factor Scale factor monthly comprehensive error 20ppm
Scale factor temperature sensitivity 20ppm/℃
Range indicator Input range ±20g
Whole machine characteristics
Environmental performance indicators Operation temperature -40℃~60℃
Storage temperature -45℃~70℃
General requirements Power supply 18~36V(DC)
Stable power consumption ≤20W Startup power consumption ≤ 25W




♦ Electrical Interfaces

Pin Connectivity Signal name Signal characteristics
1,12 External power supply PCS power supply positive 24V
2,13
PCS power supply ground Power Ground
3 200Hz signal output IMU_TX1+ IMU data output positive
14
IMU_TX1- IMU data output negative
6 Synchronization signal IMU_SYN+ IMU synchronization signal positive
17
IMU_SYN- IMU synchronization signal negative




Structural appearance and dimensions


Small Size High-precision TDL45IMU Laser Inertial Unit Large Impact Large Vibration 0
